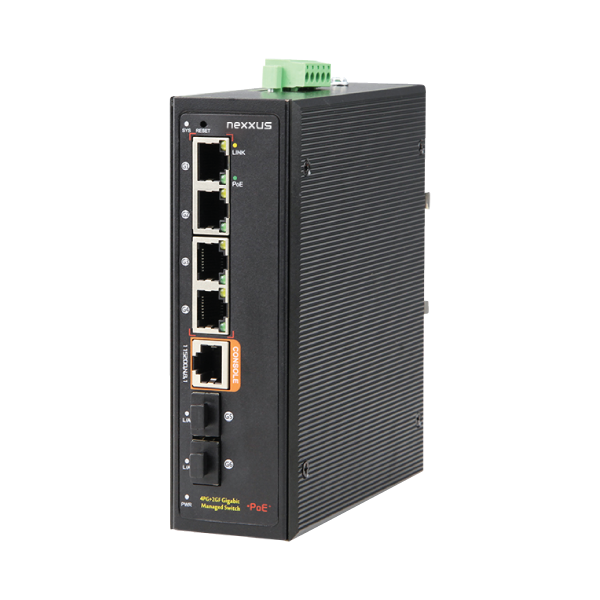

Model Number: NXP765353
NXP765353 is a full Gigabit managed bt industrial PoE switch independently developed by Nexxus. it has 4*10/100/1000M RJ45 ports and 2*100/1000M SFP fiber slot ports. Port 1-4 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power output is 95W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.
The NXP765353 has L2+ full network management function, support IPV4/IPV6 management, static route full line-rate
forwarding, security protection mechanism, ACL/QoS policy and VLAN, and is easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP(<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important
Uninterrupted communication for applications. According to the actual application requirements, you can configure
multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
