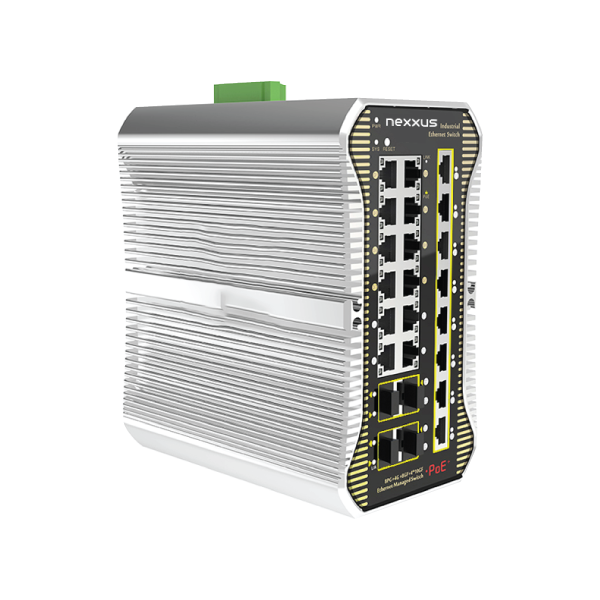

Model Number: NXP765357
The NXP765357 is a full gigabit L2+ managed industrial PoE fiber switch independently developed by Nexxus. it has 12*10/100/1000Base-T RJ45 ports and 12*100/1000Base-X SFP fiber slot ports. Port 1-8 can support IEEE 802.3af/at standard POE, single port POE power up to 30W, and the maximum POE output power of the whole machine is 120W(at-240W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, web camera, VoIP phone, industrial sensor through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.
The NXP765357 has the L2+ full network management, supports IPV4/IPV6 management, static route full line-rate forwarding, security protection mechanism, ACL/QoS policy and VLAN, and is easy to manage and maintain. It has the
leading ring network technology, supporting a variety of industrial redundant ring network protocol, any port can be a ring, support chain type, star type, double star type, ring type, tangent ring, intersecting ring, coupling ring, ring network 20ms self-healing. It has high reliability, security and manageability, ensures reliable transmission of key data, supports remote management, and can manage cluster management with NX-NMS network management platform.
The industrial series products fully follow industrial product design and material. The casing uses aluminum alloy to enhance heat dissipation. It has excellent industrial field environment adaptability (including mechanical stability, climate and environment adaptability, electromagnetic environment adaptability, etc.), the Protection level is IP40, support dual power supply, low power consumption no fan heat dissipation technology, MTBF average fault free working time can reach 35 years, 5 years warranty.
